Brushless Direct Current (BLDC) motors have become a staple in various applications due to their efficiency, reliability, and performance. Central to their operation is the BLDC motor controller, an essential component that ensures the motor runs smoothly and efficiently. This article delves into the intricacies of BLDC motor controllers, exploring their functionality, importance, and applications.
Before diving into BLDC motor controllers, it's crucial to understand the basics of BLDC motors. Unlike traditional brushed motors, BLDC motors do not have brushes, which significantly reduces mechanical wear and tear. They rely on electronic commutation rather than mechanical commutation, enhancing their lifespan and performance.
● Stator: The stationary part of the motor containing windings.
● Rotor: The rotating part that houses permanent magnets.
● Electronic Commutator: Replaces brushes and commutators found in traditional motors, using electronic switches to control the current flow.
A BLDC motor controller is a sophisticated electronic device that manages the operation of a BLDC motor. Its primary function is to regulate the power delivered to the motor's windings, ensuring precise control over speed, torque, and direction. The controller achieves this through several critical processes:
● Electronic Commutation: The controller switches the current in the motor windings in a sequence that keeps the motor running smoothly. This process involves sensing the rotor position and adjusting the current accordingly to maintain optimal performance.
● Speed Control: By varying the voltage supplied to the motor, the controller can adjust the motor's speed. This is typically achieved using Pulse Width Modulation (PWM), a technique that rapidly switches the voltage on and off to control the average power delivered.
● Torque Control: The controller manages the current flow to the motor windings to regulate the torque. Precise torque control is essential for applications requiring consistent and accurate motor performance.
● Protection Mechanisms: BLDC motor controllers are equipped with various protection features to safeguard the motor and the controller itself. These include overcurrent protection, overvoltage protection, and thermal protection.

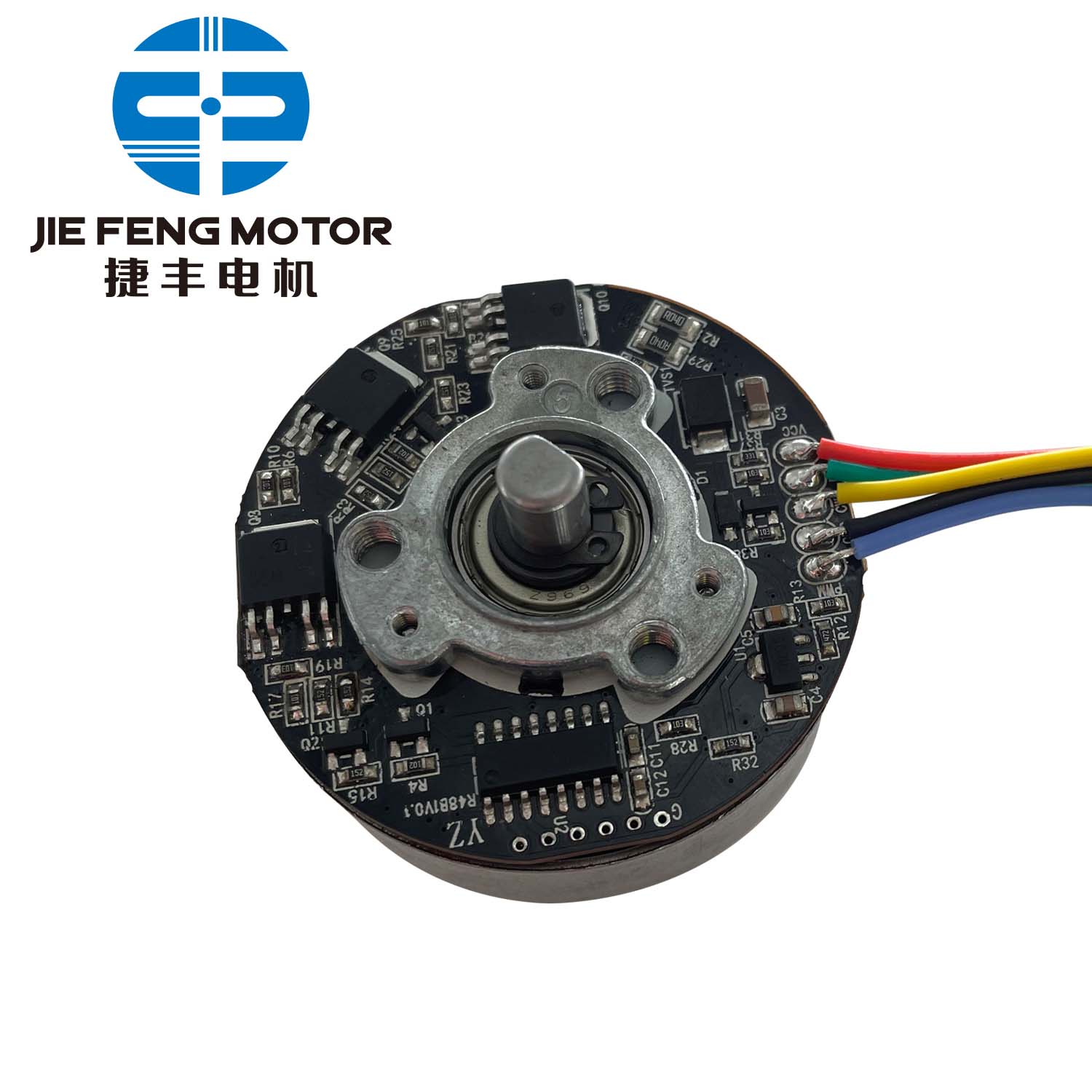

A typical BLDC motor controller comprises several essential components, each playing a crucial role in its operation:
● Microcontroller/Processor: The brain of the controller, responsible for executing control algorithms, processing sensor inputs, and managing communication protocols.
● Power Stage: Consists of power transistors (typically MOSFETs or IGBTs) that switch the current to the motor windings. These transistors handle high currents and voltages, making them critical to the controller's performance.
● Gate Drivers: These components drive the power transistors, ensuring they switch on and off efficiently and reliably.
● Sensors: BLDC motor controllers use various sensors, such as Hall-effect sensors or encoders, to determine the rotor's position and provide feedback for accurate control.
● Communication Interfaces: Controllers often include interfaces like UART, CAN, or SPI for communication with other devices or systems.
BLDC motor controllers can be broadly classified into two categories based on their commutation method:
● Sensor-Based Controllers: These controllers use position sensors (typically Hall-effect sensors) to detect the rotor's position and commutate the motor accordingly. Sensor-based controllers offer precise control and are ideal for applications requiring high performance and reliability.
● Sensorless Controllers: These controllers do not use position sensors but instead rely on back EMF (electromotive force) generated by the motor's windings to estimate the rotor position. Sensorless controllers are more cost-effective and suitable for applications where precise position control is not critical.
BLDC motor controllers are used in a wide range of applications due to their versatility and efficiency. Some common applications include:
● Electric Vehicles (EVs): BLDC motors and their controllers are widely used in electric vehicles for propulsion, offering high efficiency, reliability, and smooth operation.
● Drones and UAVs: The lightweight and high-performance characteristics of BLDC motors make them ideal for drones and unmanned aerial vehicles (UAVs). The controllers ensure precise speed and torque control for stable flight.
● Industrial Automation: BLDC motor controllers are employed in various industrial automation applications, such as conveyor belts, robotic arms, and CNC machines, where precise motion control is essential.
● Home Appliances: Many modern home appliances, including washing machines, refrigerators, and air conditioners, utilize BLDC motors for their energy efficiency and quiet operation.
● Medical Devices: In the medical field, BLDC motors and controllers are used in devices like ventilators, pumps, and surgical tools, where reliability and precision are critical.
BLDC motor controllers offer several advantages that make them a preferred choice in many applications:
● High Efficiency: BLDC motors and their controllers are highly efficient, reducing energy consumption and operational costs.
● Long Lifespan: The absence of brushes in BLDC motors eliminates mechanical wear and tear, resulting in a longer lifespan compared to traditional brushed motors.
● Precise Control: BLDC motor controllers provide accurate control over speed, torque, and position, making them suitable for applications requiring high precision.
● Low Maintenance: With fewer mechanical components subject to wear, BLDC motor systems require less maintenance, reducing downtime and maintenance costs.
● Quiet Operation: BLDC motors operate quietly, making them ideal for applications where noise reduction is essential.
While BLDC motor controllers offer numerous benefits, they also present some challenges and considerations:
● Complexity: Designing and implementing a BLDC motor controller can be complex, requiring expertise in electronics, control systems, and motor dynamics.
Cost: Sensor-based controllers, in particular, can be more expensive due to the additional sensors and components required.
● Startup and Low-Speed Operation: Sensorless controllers may struggle with startup and low-speed operation, as accurate position estimation based on back EMF is challenging at low speeds.
● Thermal Management: Managing heat dissipation in high-power applications is crucial to ensure the longevity and reliability of the controller and motor.
In the field of automation technology, a brushless motor controller – also called a position control – is used to precisely move and monitor one or more axes in a machine. The positions are processed serially, i.e., the next processing step is not performed until the previous target position has been precisely reached. The brushless dc motor controller controls the positioning process from one position to another position or a sequence of positioning processes according to a path schematic. It is, therefore, also called a feedforward control or path program control.
By means of fast counter inputs for incremental or absolute encoders, the BLDC motor controller detects the current position and speed of the respective axis and uses it with the target position to calculate the control deviation. In this case, one speaks of a motion control. In addition, controlling a brushless dc motor can include extensive additional functions for receiving, generating and processing messages, for processing position values and for monitoring the travel range limits.
The axes can be moved both electrically as well as pneumatically or hydraulically. The most common variant is the control of servomotors or stepper motors. For applications with multiple axes, a primary, intelligent control unit is usually used that communicates with the lower level systems via what is typically a standardized interface. All axes can thereby be simultaneously coordinated via classic field- or Ethernet-based bus systems.
The standalone version can use self-created sequence programs to independently control entire single-axis systems, thereby rendering a primary, intelligent control unit unnecessary. Positioning controllers can be independent devices, realized as a hardware or software module of a PLC, or integrated in the control software of actuators or drive controllers. The control can be realized as either a point control or as a significantly more complex path control in space. Brushless dc motor controllers in combination with motors from FAULHABER result in precise drive systems for highly dynamic movements.
The demand for BLDC motors and controllers is expected to grow as industries continue to seek energy-efficient and reliable solutions. Some future trends in BLDC motor controllers include:
● Integration of AI and Machine Learning: Incorporating AI and machine learning algorithms into motor controllers can enhance performance, optimize energy consumption, and predict maintenance needs.
● Advancements in Sensorless Control: Continued research and development in sensorless control techniques aim to improve startup performance and low-speed operation, making sensorless controllers more versatile.
● Miniaturization and Integration: The trend towards smaller, more integrated controllers will continue, driven by the need for compact and lightweight solutions in applications like drones and portable devices.
● Enhanced Connectivity: Improved communication interfaces and protocols will enable better integration of BLDC motor controllers with IoT (Internet of Things) systems, facilitating remote monitoring and control.
BLDC motor controllers are indispensable components in modern motor control systems, offering high efficiency, precise control, and reliability across various applications. As technology advances, these controllers will continue to evolve, providing even greater performance and versatility. Understanding their functionality, components, and applications is essential for leveraging their full potential in today's rapidly advancing technological landscape.
