A gear motor is a fundamental component in countless machines and devices we use daily. From the conveyor belts in a factory to the power windows in your car, these compact powerhouses are essential for converting electrical energy into mechanical motion. But what exactly is a gear motor, and how does it achieve this crucial task? This guide will explore the inner workings of gear motors, their types, applications, and why they are so vital across various industries.

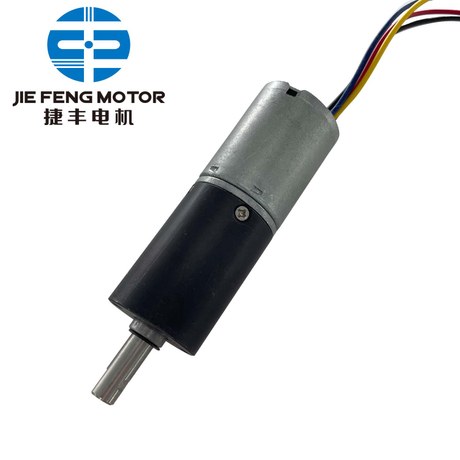

At its core, a gear motor is a combination of an electric motor and a gear train, all housed within a single unit. The electric motor provides the initial speed and power, but often, its raw output is too fast and lacks the necessary torque for most practical applications. This is where the gearbox comes in. The system of gears inside the gearbox, known as a gearhead, reduces the motor's speed while simultaneously increasing its torque.
Think of it like the gears on a bicycle. When you shift to a lower gear to climb a hill, you pedal more times (higher speed input), but it's easier to push the bike forward (higher torque output). A gear motor works on a similar principle. The gear motor gear system is precisely engineered to achieve a specific output speed and torque, making it a highly efficient and versatile solution for motion control.
Integrating a gear motor into a system offers several distinct advantages over using a separate motor and gearbox.
Increased Torque: The primary benefit is the ability to generate high torque at low speeds. This allows small, energy-efficient motors to move heavy loads that they otherwise couldn't.
Precise Speed Control: The gear reduction provides a consistent and controlled output speed, which is critical for applications requiring precision and repeatability.
Compact and Integrated Design: Combining the motor and gearbox into one unit saves space and simplifies the design and installation process. This integration also ensures that the components are perfectly matched for optimal performance.
Enhanced Efficiency: A well-designed gear motor minimizes energy loss, ensuring that more of the electrical power is converted into useful mechanical work.
Cost-Effective: By providing a complete, pre-engineered solution, gear motors can reduce design complexity, assembly time, and overall project costs.
The world of gear motors is diverse, with different types designed to meet specific operational requirements. The main distinction lies in the type of gear arrangement used in the gearhead and the kind of motor (AC or DC) that powers it.
The gear motor gear arrangement determines the motor's performance characteristics, such as efficiency, noise level, and output shaft orientation.
Gear Type | Description | Common Applications |
|---|---|---|
Spur Gear | Features straight teeth mounted on parallel shafts. They are simple, cost-effective, and efficient but can be noisy at high speeds. | Vending machines, pumps, automation equipment. |
Helical Gear | The teeth are cut at an angle, allowing for smoother and quieter operation than spur gears. They can handle higher loads. | Conveyor systems, elevators, industrial machinery. |
Bevel Gear | Cone-shaped gears used to transmit power between shafts that intersect, typically at a 90-degree angle. | Right-angle drives, printing presses, power tools. |
Worm Gear | Consists of a screw-like "worm" that meshes with a "worm wheel." They offer very high gear reduction in a compact space and are self-locking. | Lifts, escalators, material handling equipment. |
Planetary Gear | A complex arrangement with a central "sun" gear, multiple "planet" gears, and an outer "ring" gear. They offer high torque, high efficiency, and a compact design. | Robotics, 3D printers, medical devices. |
The choice between an Alternating Current (AC) and Direct Current (DC) motor depends on the power source and the application's control requirements.
AC Gear Motors: These motors run on standard AC power from a wall outlet. They are known for their reliability, long service life, and suitability for applications that require continuous operation at a constant speed. You'll find them in industrial machinery, conveyors, and large appliances.
DC Gear Motors: Powered by DC sources like batteries or power supplies, these motors offer excellent starting torque and variable speed control. This makes them ideal for portable equipment, automotive applications (like power seats and wipers), robotics, and medical devices where precise speed adjustments are necessary.
The versatility of gear motors makes them indispensable across a vast spectrum of industries. Their ability to deliver controlled power is leveraged in both simple and complex systems.
Industrial Automation: On assembly lines, gear motors power conveyor belts, robotic arms, and packaging machines, ensuring smooth and synchronized production processes.
Automotive Industry: From adjusting your side mirrors and seats to operating your windshield wipers, DC gear motors are everywhere inside a modern vehicle.
Medical Equipment: Precision and reliability are paramount in healthcare. Gear motors are used in hospital beds, infusion pumps, surgical tools, and medical imaging machines.
Robotics: Both industrial and hobbyist robots rely on gear motors for precise joint movement and locomotion, enabling them to perform complex tasks with accuracy.
Consumer Electronics & Appliances: Your electric can opener, ice dispenser, and even some high-end coffee makers use small gear motors to function.
Agriculture: Gear motors are used in irrigation systems, feeding mechanisms, and harvesting equipment to automate and improve farming efficiency.
Selecting the right gear motor is crucial for the success of your project. When evaluating the top gear motors on the market, consider these key factors:
Torque Requirements: How much rotational force does your application need? This is often the most critical parameter.
Speed (RPM): What is the desired output speed? The gear ratio will determine the reduction from the motor's base speed.
Voltage and Power Source: Will you be using AC or DC power? Ensure the motor's specifications match your available power supply.
Duty Cycle: Will the motor run continuously or intermittently? This affects the thermal management and longevity of the motor.
Physical Constraints: Consider the available space, mounting orientation, and the required shaft diameter and orientation (e.g., right-angle or inline).
Operating Environment: Will the motor be exposed to moisture, dust, or extreme temperatures? Look for a motor with an appropriate IP (Ingress Protection) rating.
A standard motor provides high-speed, low-torque rotation. A gear motor integrates a gearbox with the motor to reduce this speed and increase the torque, making the power more usable for a wider range of applications.
The gear ratio is the ratio of the input speed (from the motor) to the output speed (from the gearbox). If your motor runs at 3000 RPM and you need an output speed of 100 RPM, you would need a gear ratio of 30:1 (3000 / 100).
Most DC gear motors and many AC gear motors are reversible. The direction of a DC motor can be changed by reversing the polarity of the power supply.
Noise is often related to the type of gear. Spur gears tend to be noisier due to the way their teeth engage, while helical and planetary gears are designed for smoother, quieter operation.
When your application demands reliability, precision, and performance, choosing the right manufacturer is paramount. For top-tier gear motor solutions, look no further than Jiefeng Motors.
Jiefeng Motors has established itself as a leading provider of high-quality gear motors, offering a comprehensive range of products designed to meet the rigorous demands of any industry. With a commitment to innovation, quality engineering, and customer satisfaction, they deliver solutions that you can trust. Whether you need a standard model or a custom-engineered gear motor, their expert team is ready to assist.
Take the next step in powering your project with excellence.
