Views: 0 Author: Site Editor Publish Time: 2026-01-23 Origin: Site

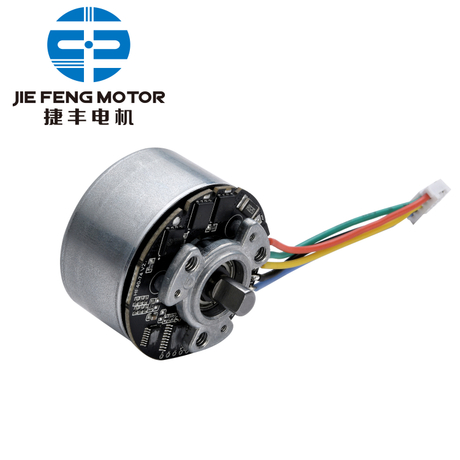

Have you ever wondered what powers high-performance drones, electric vehicles, or even the hard drive in your computer? The answer often lies in a sophisticated and efficient piece of engineering: the Brushless Direct Current motor. Unlike their older, brushed counterparts, these motors operate with remarkable precision and longevity. But how exactly does a motor run without the very components that traditionally supplied its power? This article explores the inner workings of the BLDC motor, revealing the clever principles that allow it to function so effectively.
We will delve into the fundamental components of a brushless motor dc, explain the science behind its rotation, and compare its advantages over traditional motors. Understanding how a Brushless Direct Current motor operates is key to appreciating why it has become the preferred choice for countless modern applications.
To understand how a brushless motor dc functions, we must first identify its key parts. Unlike brushed motors that rely on physical contact to transfer power, a BLDC motor uses a more advanced electronic system. The magic lies in the interaction between its stationary and rotating parts, managed by an intelligent controller.
The two primary elements of any BLDC motor are the rotor and the stator.
What is the Rotor? The rotor is the rotating part of the motor. In a Brushless Direct Current motor, the rotor is fitted with permanent magnets. These magnets create a constant magnetic field. The rotor's job is to spin in response to the magnetic fields generated by the stator. What is the Stator? The stator is the stationary part of the motor. It consists of several coil windings, typically arranged in a circular pattern around the rotor. When an electric current passes through these coils, they become electromagnets. The stator's function is to create a rotating magnetic field that pulls the rotor's permanent magnets along with it. The continuous operation of a Brushless Direct Current motor depends entirely on the precise and sequential energizing of these stator coils.
Since there are no brushes, how do the stator coils get the right amount of electricity at the right time? This is where the electronic speed controller (ESC) comes in. The controller is the brain of the BLDC motor system. It uses information from sensors to determine the exact position of the rotor. Based on this positional data, the controller sends electrical pulses to the appropriate stator coils, creating a magnetic field that is always slightly ahead of the rotor's magnets. This continuous "pull" is what generates smooth, controlled rotation. The performance of a brushless motor dc is heavily reliant on this sophisticated controller.
Below is a table outlining the essential components and their functions within a Brushless Direct Current motor.
Component | Type | Function |
|---|---|---|
Rotor | Rotating Part | Houses permanent magnets that create a constant magnetic field. It follows the stator's rotating magnetic field. |
Stator | Stationary Part | Contains electromagnet coil windings that are energized sequentially to create a rotating magnetic field. |
Hall Effect Sensors | Positional Sensors | Detect the position of the rotor's magnets and send this information to the electronic controller. |
Electronic Controller (ESC) | Control Unit | Interprets sensor data and precisely controls which stator coils to energize, managing the motor's speed and torque. |
The principle behind the rotation of a BLDC motor is called electronic commutation. This process replaces the mechanical brushes and commutator of a traditional DC motor with a completely electronic system. It’s a smarter, more efficient method of generating motion.
Electronic commutation is the sequential switching of current to the stator coils to maintain the motor's rotation. Here’s a step-by-step breakdown:
Position Detection: Hall effect sensors (or sometimes sensorless algorithms) detect the position of the rotor's permanent magnets. Signal to Controller: The sensors send a signal to the electronic controller, indicating which stator coils are nearest to the rotor's magnets. Energizing Coils: The controller processes this signal and energizes the next set of stator coils in sequence. This creates an electromagnetic field that attracts the rotor's permanent magnets. Rotor Movement: The rotor moves to align with the newly created magnetic field. Repeat: As the rotor moves, the sensors detect its new position, and the controller energizes the next set of coils. This cycle repeats hundreds or thousands of times per second, creating a smooth and continuous rotating magnetic field that the rotor constantly follows. This is the core process that allows a brushless motor dc to operate so efficiently. The precise timing of this process is what defines the performance of the BLDC motor.
The design of a Brushless Direct Current motor provides several significant advantages over its brushed counterparts. The absence of brushes eliminates friction and energy loss, making the BLDC motor a superior choice for applications demanding high efficiency and reliability.
Brushes in a traditional motor wear down over time due to constant physical contact with the commutator. This friction not only generates heat and reduces efficiency but also creates carbon dust that can interfere with the motor's operation. Eventually, the brushes wear out completely and must be replaced.
A BLDC motor has no such components. With no brushes to wear out, the operational lifespan of a brushless motor dc is significantly longer, limited only by the durability of its bearings. This makes the Brushless Direct Current motor exceptionally reliable and reduces maintenance requirements.
The electronic controller of a BLDC motor provides incredibly precise control over speed and torque. Because the controller dictates exactly when and how much current flows to the stator coils, it can maintain a consistent speed under varying loads. This high degree of control is crucial in applications like robotics, CNC machines, and electric vehicles, where precision is paramount. The feedback loop between the sensors and controller allows the Brushless Direct Current motor to respond instantly to changes in demand. A brushless motor dc can deliver maximum torque across its entire speed range.
The superior efficiency, long lifespan, and precise control of the BLDC motor have made it a go-to technology in a vast array of industries. From small consumer electronics to large industrial machinery, the brushless motor dc is everywhere. Its ability to provide high power in a compact size makes the Brushless Direct Current motor especially valuable.
Consumer Electronics: Computer hard drives, cooling fans, and cordless power tools. Automotive Industry: Electric vehicles, power steering, and HVAC systems. Aerospace and Drones: Propulsion systems for drones and various actuators in aircraft. Medical Equipment: Surgical tools, pumps, and robotic-assisted devices. Industrial Automation: Robotics, conveyor systems, and CNC machinery.
The versatility of the BLDC motor continues to drive innovation in these and many other fields. For engineers and product designers looking for a high-performance motor solution, finding a reliable supplier is crucial. For top-quality components and expert guidance on integrating a Brushless Direct Current motor into your next project, consider sourcing from specialists in the field. Companies like jiefeng motors offer a wide range of BLDC motor options designed for performance and durability. Their expertise can help ensure your application benefits from the full potential of brushless motor dc technology.
The primary difference is how they commutate, or switch the direction of current in the windings. A brushed motor uses mechanical brushes and a commutator. A BLDC motor, on the other hand, uses an electronic controller and sensors, eliminating physical contact and wear. This makes the brushless motor dc more efficient and reliable.
No, a Brushless Direct Current motor cannot run without an electronic speed controller (ESC). The controller is essential for electronic commutation—the process of sending timed electrical pulses to the stator coils to create the rotating magnetic field that makes the motor spin.
Initially, a BLDC motor and its required controller can have a higher upfront cost compared to a traditional brushed motor. However, its superior efficiency, longer lifespan, and minimal maintenance needs often result in a lower total cost of ownership over the product's life. The reliability of a brushless motor dc provides significant long-term value.
These are called sensorless BLDC motor systems. Instead of using Hall effect sensors, the controller measures the back electromotive force (back-EMF) generated by the motor's coils to determine the rotor's position. This method reduces complexity and cost but can sometimes be less precise at very low speeds. Nonetheless, it's a popular design for many Brushless Direct Current motor applications.
