Quick answer:
A compact industrial drive system is ideal for applications requiring high torque output and self-locking capabilities in a confined space. Choose this technology when safety and precise speed control matter more than maximum energy efficiency, as the perpendicular design naturally prevents back-driving during power loss.
Finding the correct components for industrial automation often feels like navigating a maze. Engineers and procurement managers constantly balance cost, performance, and physical constraints. Selecting the right components ensures your machinery operates smoothly and safely, reducing maintenance overhead in the long run.

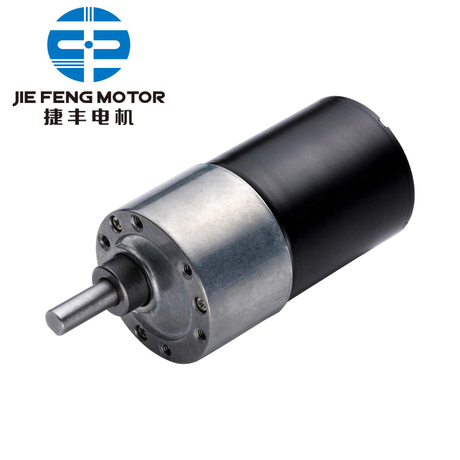

Many modern facilities prioritize space-saving designs without sacrificing power. This is where selecting a small gear motor becomes highly advantageous. These compact units integrate seamlessly into robotics, medical equipment, and office automation tools, providing reliable mechanical force while taking up minimal room on the assembly line.
Understanding the specific mechanics of these systems allows businesses to make informed purchasing decisions. Rather than relying on trial and error, project leaders can analyze torque requirements and load capacities upfront. This guide explores the mechanical principles behind industrial drives, helping you match the appropriate technology to your specific operational needs.
The mechanical layout of a drive system heavily influences its performance characteristics. Engineers typically choose between parallel shaft designs and right-angle configurations based on the physical space available inside the machinery. According to industry standards, parallel configurations generally offer higher mechanical efficiency because they minimize sliding friction between the internal components.
For applications requiring straightforward power transmission along a single axis, a spur gear reduction motor provides an excellent balance of cost and durability. These straight-cut designs transmit power efficiently, making them suitable for low-speed, high-torque applications where operational noise is not the primary concern. They are particularly popular in conveyor systems and basic material handling equipment.
On the other hand, right-angle designs allow for much tighter packaging. By changing the direction of power transmission by 90 degrees, manufacturers can fit powerful machinery into surprisingly narrow enclosures. The trade-off is often a slight reduction in overall efficiency due to the sliding contact required to transfer energy around the corner.
Below is a comparison of common industrial drive systems based on typical performance metrics.
Drive Type | Configuration | Efficiency Rating | Typical Application | Back-driving Prevention |
Straight-cut | Parallel | High (85-95%) | Conveyors, basic pumps | Low |
Planetary | Coaxial | Very High (90-97%) | Robotics, precision tools | Low |
Right-angle | Perpendicular | Moderate (50-80%) | Hoists, elevators, lifts | High (Self-locking) |
Every automation project carries unique requirements. A system designed for a fast-moving packaging line will fail quickly if installed in a heavy-duty lifting application. Assessing your specific load profile, duty cycle, and environmental conditions prevents premature equipment failure.
Safety remains the top priority in any industrial setting. If a motor loses power while lifting a heavy load, gravity will attempt to force the system backward, potentially dropping the load and causing severe damage or injury.
To mitigate this risk, engineers often specify a worm gear reduction motor for vertical lifting applications. The inherent design of this unit prevents the output shaft from spinning the input shaft backward. This natural self-locking feature eliminates the need for complex external braking systems, simplifying the overall machine design and enhancing workplace safety.
The precision of internal components dictates how long a unit will last before requiring service. High-quality manufacturers utilize advanced machining techniques to ensure perfect alignment between meshing teeth. This reduces vibration, lowers operating temperatures, and extends the lifespan of internal lubricants.
Taishan Jie Feng Motors Co., Ltd., established in 2010, operates a 50,000 square meter plant in Guangdong, China, dedicating over 500 employees to the production of high-quality industrial drives. Facilities of this scale leverage precision production lines to maintain strict quality control, ensuring consistent reliability across large production runs.
Upgrading to modern drive systems requires careful planning. Maintenance teams must ensure that new electrical controllers match the specifications of the mechanical hardware. Installing units that draw too much current can overload existing factory wiring, leading to unexpected downtime.
Additionally, facilities must account for physical mounting differences. While many modern units are highly compact, their mounting bolt patterns may differ from legacy equipment. Taking precise measurements and consulting with technical suppliers early in the design phase prevents costly delays during installation.
By carefully evaluating efficiency ratings, safety features, and manufacturer credibility, businesses can select components that drastically improve their operational capabilities.
The lifespan of a standard industrial drive depends entirely on its operating conditions and maintenance schedule. When properly lubricated and operated within rated load limits, high-quality units can last between 10,000 and 20,000 operating hours. Operating a unit continuously at maximum capacity will significantly reduce its operational life.
Prevent overheating by ensuring the unit is appropriately sized for the applied load. Verify that the ambient temperature remains within the manufacturer's specified limits. Additionally, check that the unit is filled with the correct type and amount of synthetic lubricant, as friction is the primary cause of excess heat build-up.
Self-locking behavior is determined by the internal friction angle of the mechanical components. Right-angle designs with a high reduction ratio naturally create enough sliding friction to prevent reverse movement. Coaxial and parallel designs use rolling friction, which is highly efficient but cannot prevent back-driving on its own.
